10-25mm Mini Pedestal For Paving (with 2 Plates) – Wallbarn

Wallbarn Minipad ultra low height pedestals stocked in UK. Fully adjustable height pedestal. Delivery within 48 hours of order.

They have been developed for projects where restricted and very low height thresholds exist but millimetre precise changes to height are required to achieve completely flat and seamless finish. They support paving slabs, promenade tiles on flat roofs , balconies, terraces and podium decks.

Wallbarn has the most comprehensive range of height of pedestals in UK.

From 10mm up to 40mm, Minipads are designed so manual adjustment at ultra low thresholds is made easy. At 10 to 20mm, the thread allows 5mm of change to the level with a 5mm extension plate which is fitted to the bottom of the pedestal.

Special handle grips have been incorporated into the design to help installers fit their fingers into this tight gap and can turn the pedestal to adjust the height. Adjustment can be made whilst the slab is in situ, so delays by constantly lifting the slab to change the height are avoided.

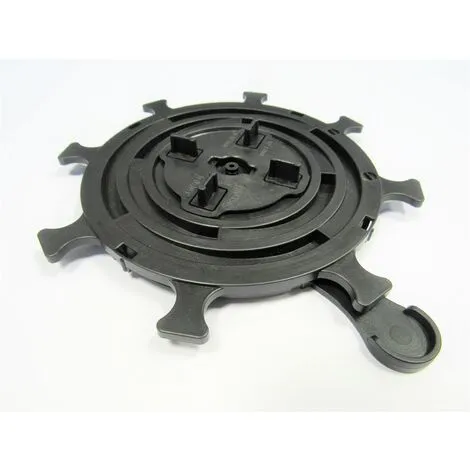

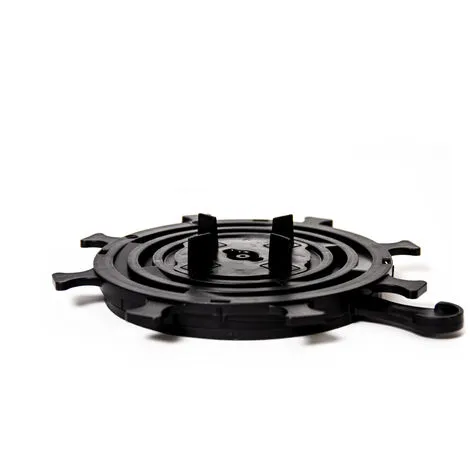

The lug fittings on the headpieces act as a straight paving guide, so all slabs will follow a uniform line. The headpieces and baseplates are both 150mm in diameter and will hold the edge of four separate slabs and give adequate support to the paving system. The stems are telescopic, so users can turn the pedestal until it bites to the correct height.

This is a suspended system, the weight of the slab holds everything in place. Changes to height can be made whilst the slab is in place. This saves a great deal of time and labour.

They are the fast and easy way to lay suspended paving and decking systems.

Technical Information

Material : 

Virgin fibre injection moulded polypropylene

Weight Tolerance :

683kg

Max Temperature :

Plus 75° C

Min Temperature : 

Minus 40°C

Base Plate Diameter : 

150mm

Headpiece Diameter : 

150mm

Lug Dimensions : 

2 x 10mm, 4 x 10mm, 6 x 16mm

Accessory product : Metal Edging Plate.
