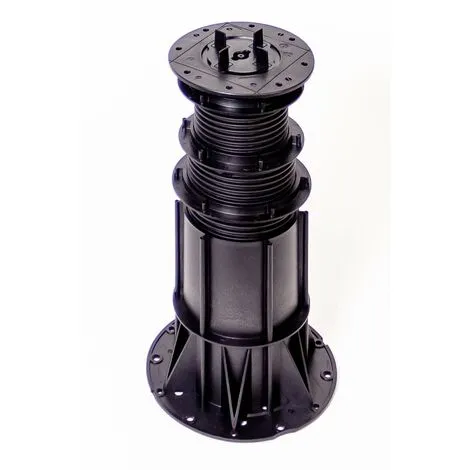

215-320mm Heavy Duty Pedestal For Paving – Wallbarn

Wallbarn Megapad heavy duty pedestals stocked in UK. Can tolerate 2 tonnes of weight each. Delivery within 48 hours of order. Superior quality polypropylene units without fillers for highest specification and performance.

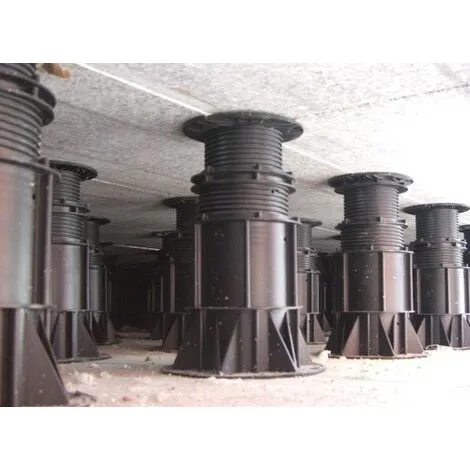

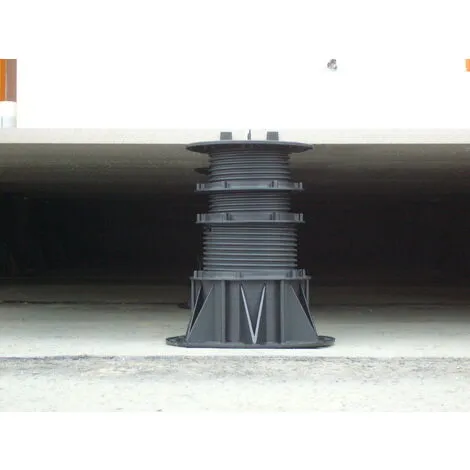

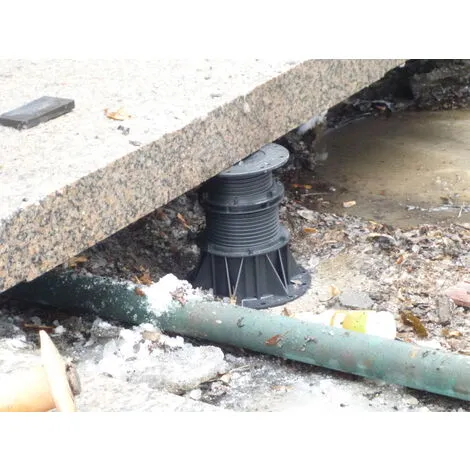

Megapads have a massive height range, over 1 metre tall. They can tolerate over 2 tonnes in weight per unit. They are ideal to support paving slabs and promenade tiles on flat roofs, balconies, terraces and podium decks where very heavy traffic is anticipated.

Megapad should be used in conjunction with metal edging plate for best results. Wallbarn has the most comprehensive range of height of pedestals in UK.

Telescopic stems mean height can be adjusted by hand whilst paving slab in in place, reducing time and labour during installation and improving health and safety. Locking nuts secure the height to prevent unwinding over time.

Megapad can be inverted when paving up to walls and balustrades. The lug can be fitted into the baseplate so the wider baseplate acts as headpiece giving full support to the tile at the very edge.

Megapads are injection moulded from virgin fibre polypropylene for the highest quality. They will not become brittle in low temperatures. Megapads have been pressure tested for Compressive Strength over 2 tonnes at +20°C and – 40°C. See technical data below for details.

A range of different lug size, slope correctors, levelling shims and accessories are available for use with TD Megapads from Wallbarn.

Technical Information

Material : 

Virgin fibre injection moulded polypropylene

Weight Tolerance :

Maximum Load 2,057 kg

End of Linear Behaviour at 1,560 kg

Max Temperature :

Plus 75° C

Min Temperature : 

Minus 40°C

Base Plate Diameter : 

200mm

Headpiece Diameter : 

150mm

Lug Dimensions : 

2 x 10mm, 2 x 18mm, 4 x 10mm

Accessory product : Metal Edging Plate, Slope Correctors, Rail System.
