SECUREFIX DIRECT Agricultural Quad Crop ATV Sprayer With Boom On Trailer 60L (Pesticide Agriculture Spray Machine)

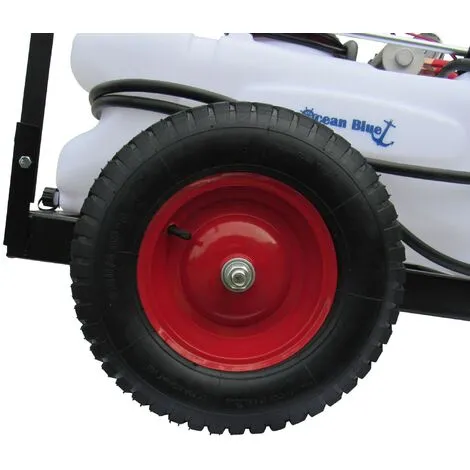

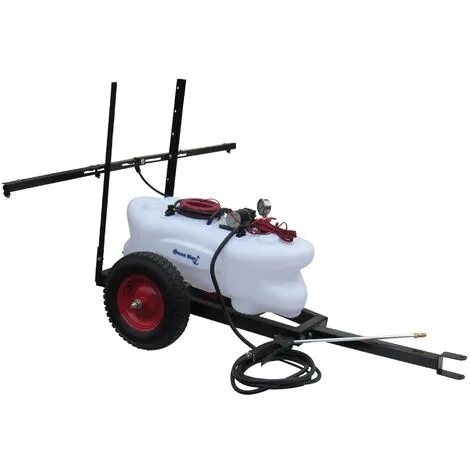

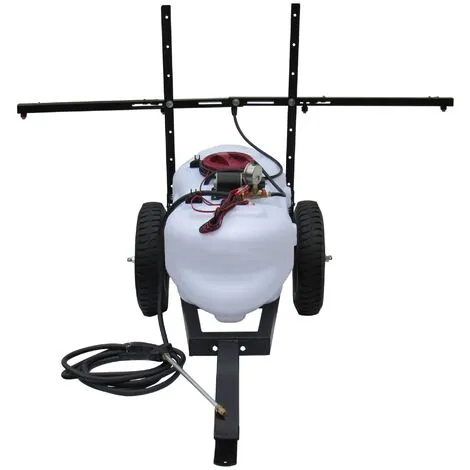

Our 60 Litre Sprayer is an ideal addition to your ATV or Quad Bike for spraying your farmland, gardens, shrubs & more. Should you find an area where you can’t get your vehicle to, then switch to the hand lance. With over 5 metres of hose, you will be sure to cover all the areas that you need, ensuring that your land stands out as well maintained, or for generating a bumper harvest at the end of the season.Although it’s perfectly fine for use with water, this ATV Sprayer is primarily designed for pesticides, herbicides, and other chemical growth regulators. It comes with a diaphragm pump for a steady, high-pressure stream. It’s robust and anti-corrosion design allows for high reliability and a long service life. The nozzle also features two-step filtration technology to prevent the entry of foreign substances, so as to ensure spray quality.The Tank, Chassis, and Hose have been partially assembled. This guide covers the other half of the assembly process.TRACTION FRAMEThis goes on the front of the product. To fix it to the Chassis, you’ll need to use the included:X2 8mm x 60mm BoltsX2 8mm Flat WashersX2 8mm Spring WashersX2 8mm NutsWHEELSPass the Wheel Shaft through the Chassis and place the wheels on either end. Secure them to the Wheel Shaft using the included:X2 16mm Flat WashersX2 16mm Spring WashersX2 16mm NutsUPRIGHT POSTSThese go on the back of the product. Hold them on the inner part of the Chassis so the holes line up neatly. Then fix them using the included:X6 8mm x 15mm BoltsX6 8mm Flat WashersX6 8mm Spring WashersX6 8mm NutsBEAMThis comes in two parts that will need to be fixed together. You’ll find that one bar fits into the other such that the holes line up. The bigger holes fit onto the Upright Posts, and the smaller holes go on top to support the Spray Lance Clamps. For the Beam, you’ll need the included:X3 8mm x 15mm BoltsX3 8mm Flat WashersX3 8mm Spring WashersX3 8mm NutsThis setup allows for easy lateral adjustments. Make sure the nuts and bolts hold up the Beam firmly. To optimise the distribution of spray contents, it’s recommended to keep the Spray Lance at a height of 50cm when spraying herbicides or soil treatment; and 30cm when spraying insecticides, fungicides, and growth regulators.SPRAY LANCE CLAMPSAll four of these have two holes each, but not all of them need to be used. They go under the small holes on the Beam. To secure them, you’ll need the included:X4 5mm x 15mm BoltsX4 5mm Flat WashersX4 5mm Spring WashersX4 5mm NutsThese are set up in such a way that is easy to modify if required.LONG SPRAY LANCEThe pieces screw into each other simply. You just need to push the rubber washers closer to the edge.MANOMETER & SILVER CLIPSThe Manometer will be inside the Tank Lid. Use the rubber washer and then screw it on. Fit the silver slips to hold the hosing to the side of the tank.POWER CORDOnce everything else is complete, the power cord can be connected to a vehicle battery.Please note tools are not included. Specifications:Capacity: 60 LVoltage: 12V DCMotor Power: 65WPump Type: Diaphragm PumpPower Cord Length: 5MSpray Gun Pressure (Spray): 5.5bar / 79.8PSISpray Gun Flow Rate (Spray): 2.1LPM / 0.6GPMHose Length: 5MSpray Gun Pressure (Stream): 3.5bar / 50.8PSISpray Gun Flow Rate (Stream): 3.1LPM / 0.8GPMSpray Gun Level Range (Stream): 8MSpray Lance Pressure: 4.5bar / 65.3PSISpray Lance Flow Rate: 2.6LPM / 0.7GPMMax Pump Pressure: 9bar / 130PSIMaterial: High-density PolyethyleneTotal Length: 1.5MTotal Width: 1.5MTotal Height: 0.9MProduct Code: SFZZSHS60Weight: 31kg
