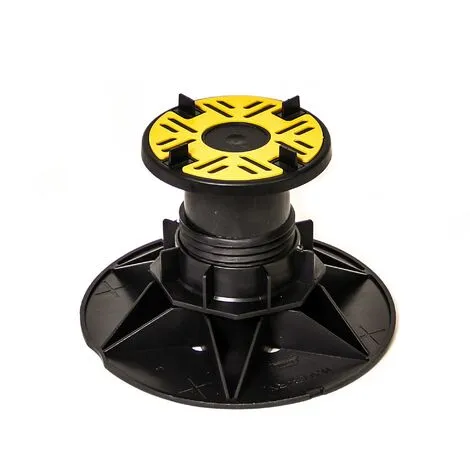

WALLBARN 95-130mm UNIVERSAL Pedestal

Adjustable paving & decking pads stocked in UK. Delivery within 48 hours of order confirmation. Superior quality adjustable height pedestals for paving and decking on terraces, balconies, flat roofs and podium decks

Manually adjustable height support pads for suspended paving and decking systems. Raise the slabs off the deck to improve drainage and optimise roof space. Create flat upper surfaces on sub-decks built to falls quickly and easily. The high quality solution for supporting raised stone slabs, promenade tiles or decking.

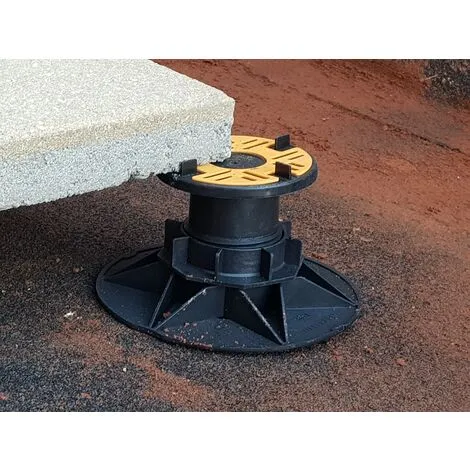

Universal pedestals have a telescopic stem which is twisted by hand to create millimetre precise changes in height. This is a suspended system, the weight of the slab or decking holds everything in place. Changes to height can be made whilst the slab or decking is in place, saving time and labour.

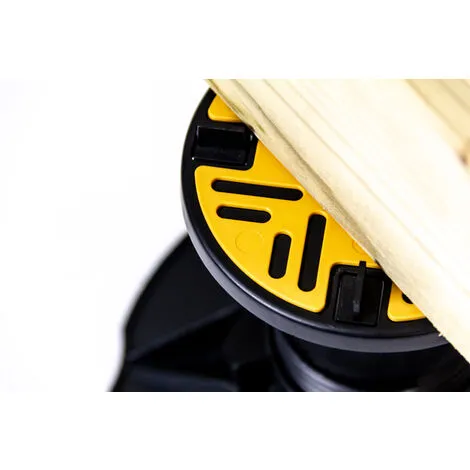

Positioning lugs on the headpiece hold either the paving slab or decking joist in place without the need for fixings. Rainwater runs between and under the slabs or decking, so there is no standing water left on the surface. They create a cavity between the sub-deck and surface which helps ventilate the structure and allows services such as pipes and cables to be hidden from view.

Universal Adjustable paving pedestals and decking supports are available in heights from 25mm up to 380mm. They are manufactured from virgin fibre polypropylene and can tolerate over 1 tonne in weight per unit. Universal Pedestals contain no fillers and will not crack in cold temperatures. They have been strength tested at – 40°C. See technical data below for details.

A range of slope correctors, levelling shims and accessories are available for use with Universal adjustable paving pedestals from Wallbarn.

Technical Information

Material : 

Virgin fibre injection moulded polypropylene

Weight Tolerance :

Maximum Load 11,493 N = 1,171kg

End of Linear Behaviour at 6,700N = 683kg

Max Temperature :

Plus 75° C

Min Temperature : 

Minus 40°C

Base Plate Diameter : 

200mm or 150mm

Headpiece Diameter : 

120mm

Lug Dimensions : 

2 x 10mm, 4 x 10mm, 2 x 18mm

Accessory product : 

Metal Edging Plate
